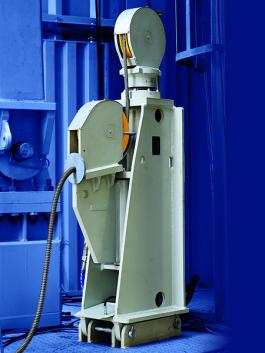

Hydraulic Cathead

Rig floor equipment for smooth and adjustable make-up loads.


Unique Features

• Remote control module enables pressure regulation
• Cylinder operation from a safe and convenient location on the rig
• Simple hydraulic circuit ensures trouble free performance
• Simplified design allows long time between maintenance intervals
• Climate range: -40°C to +55°C
• Suitable for artic and desert environment
• Suitable for onshore and offshore rigs
• CE conformity
• ATEX conformity on request



This useful rig floor equipment provides smooth, adjustable make-up loads. Due to its hydraulic operation, the Bentec Hydraulic Cathead eliminates electrical hazards. The system can be powered by an independent hydraulic power unit or integrated into a centralized hydraulic power unit.

The pulling force provided by the Bentec Hydraulic Cathead ensures correct and sufficient make-up and break-out torque for drill pipe, drill collars, bit connection, or other applications.


Download pdf

Model HC-31.5
Max. line pull 31 500 lbs 140 kN
Max. line speed: 0.5 ft / sec 0.15 m /sec
Line stroke: 4.92 in 1 500 mm
Wireline diameter: 7/8 in 22 mm
Hydraulic working pressure: 2 030 PSI 140 bar
Hydraulic flow: 26.4 gpm 100 l / min
Operation angle of pivot arm in degrees: 25° - each side
Length: 32.3 in 821 mm
Width: 19.7 in 500 mm
Height: 84.6 in 2 000 mm
Weight less optional equipment: 2 535 lbs 1 150 kg
